20ft Mobile filling containerized fuel station with fuel dispenser

FOB Reference Price:Get Latest Price
$9,500.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JSL-1-126
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Capacity:
20000L
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Max Working Pressure(MPa):
10 MPa
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Engine, Motor, Pump
Place of Origin:
Shandong, China
Brand Name:
Jinshuilong
Dimension(L*W*H):
12218(mm)*2700(mm)*2900(mm)
Weight:
1000kg-10000kg
Certification:
ISO9001:2008
Warranty:
1 Year
Key Selling Points:
High quality and reasonable price
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
After-sales Service Provided:
Overseas third-party support available
Product name:
20ft filling containerized mobile fuel station
Application:
Industry
Usage:
bus station
Medium:
Diesel and petrol
Name:
portable fuel station
Material:
Stainless Steel Carbon Steel
Accessories:
Nozzles and unloading pump
Other name:
mobile gasoline station
Type:
Mobile
Supply Ability
Supply Ability:
25 Twenty-Foot Container per Month
Packaging & Delivery
Packaging Details
can send the mobile fule station as a soc . there is no need packing
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Video Description
Product Description

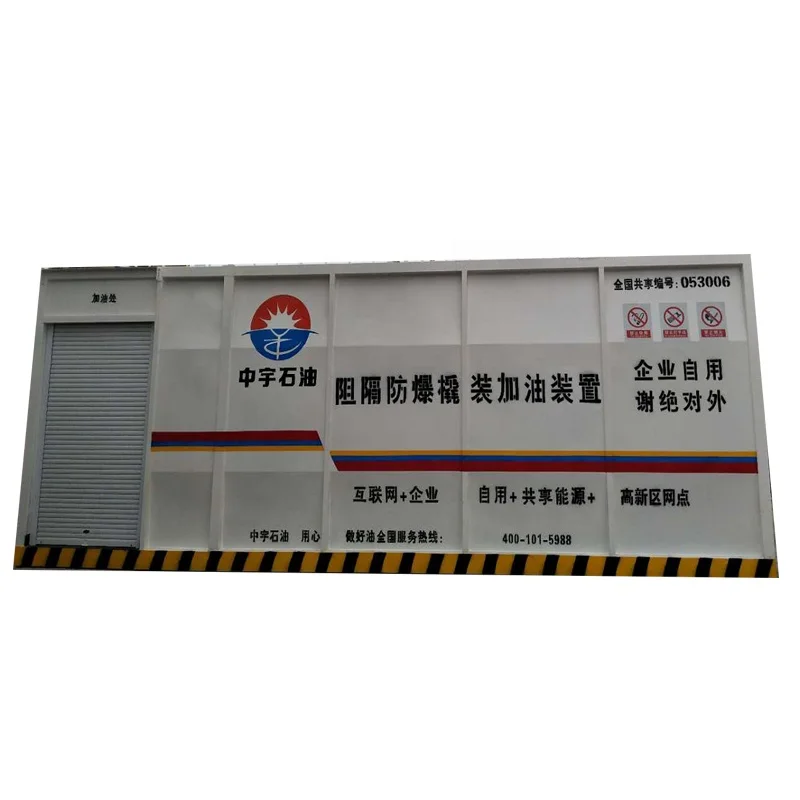

20ft Mobile filling containerized fuel station with fuel dispenser

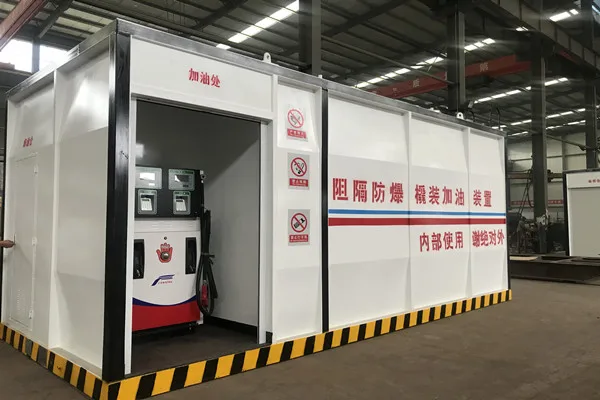

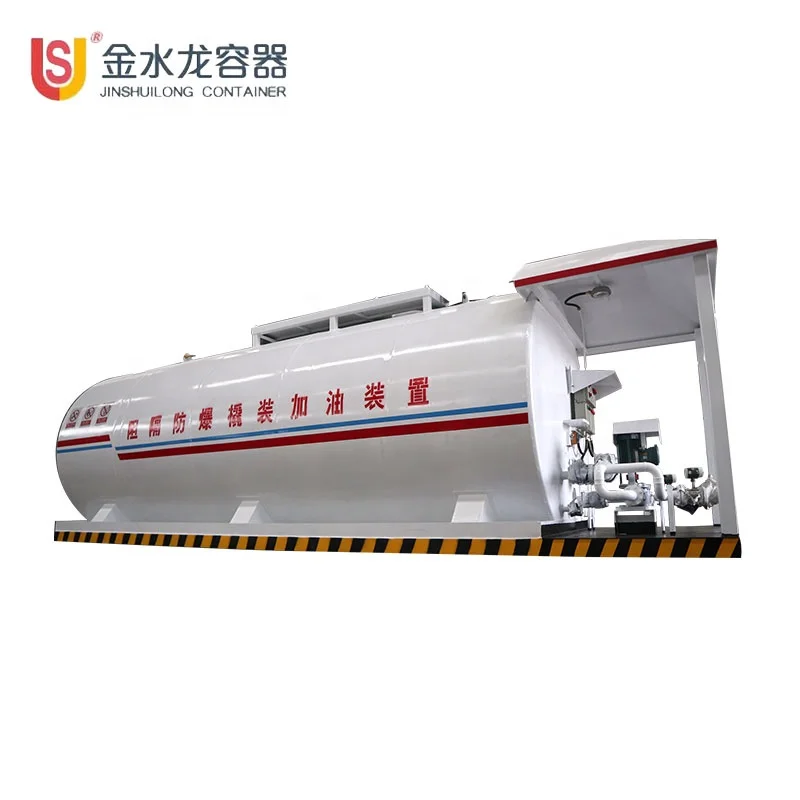

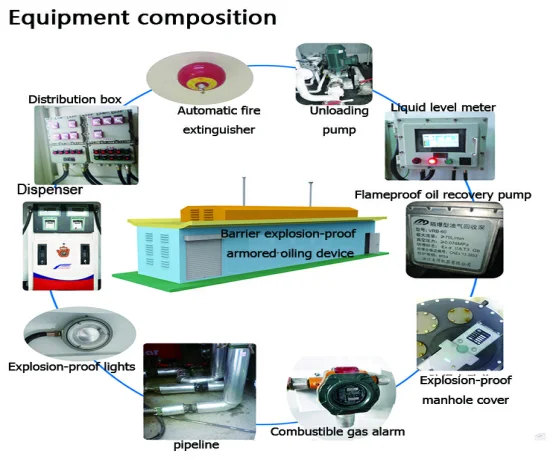

The skid-mounted station is also called a Mobile filling station. It is a ground-mounted mobile station that integrates oil
storage tanks, fuel dispensers, and video surveillance. Renovation, anti explosion-proof technology transformation is to fill anti explosion-proof material (barrier explosion-proof material is a kind of mesh structure material composed of special
aluminum alloy) in a certain density way to fill the storage tank that stores flammable and explosive liquid, There will be no
explosion accidents when encountering open flames, static electricity, impact, lightning strikes, gunshots, welding, accidental violent impact accidents.
Specification

10m³ skid mounted parameters
External dimensions (without guardrail and breathing riser)
Length: 4800mm
 Width: 2550mm
Height: 3200mm
 Floor area
About 13m2
Capacity
Diesel ≈ 10 cubic meters (about 7 tons)
Emergency pressure relief device
Opening pressure 4300Pa
Weight
About 10.4T
Tank body
Inner can: 8mm
Outer tank: 5mm
Explosion-proof device
AQ3002-2005 specifies type IV barrier explosion-proof materials
Paint
The whole equipment is sandblasted, external three-layer paint spraying, epoxy zinc-rich primer 80 micron, epoxy cloud iron paint,polyurethane topcoat
Operating Voltage
Three-phase five-wire 380V/220V/50HZ
Working power
When all machines work at the same time, the maximum power does not exceed 10KW

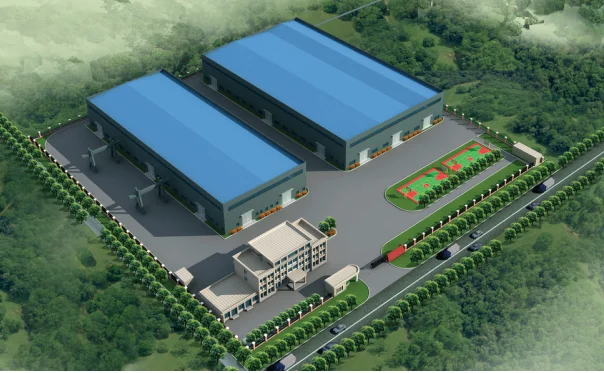

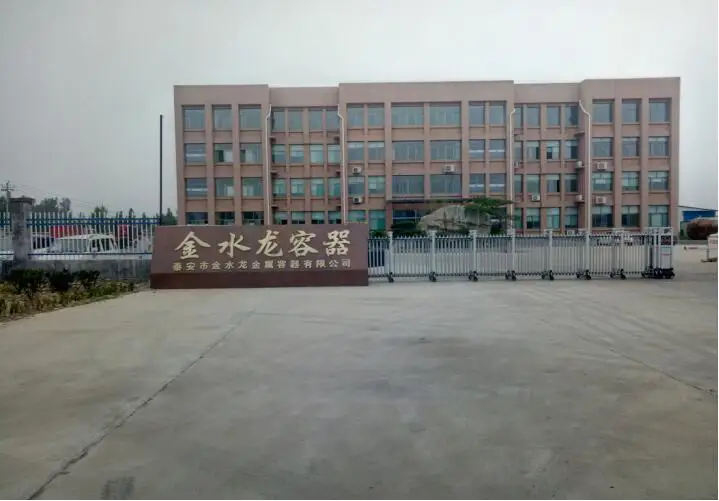

Company Profie

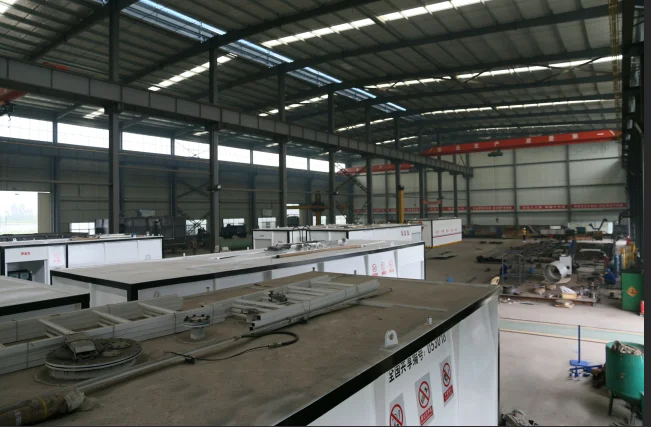

We specialized in all kinds of storage tanks, fuel storage tank for diesel, gasoline,double wall fuel tank ,portable fuel stations
and other pressure vessels. Our products have been exported to many countries in Asia,Africa ,Australia and South America.such as Japan,Lebanon,India,Djibouti, Japan,Lebanon,India,Djibouti,Angola,Mozambique,Argentina over twenty beyond countries all over the world. And we get good reputation from our customer owing to our innovative and quality products
